Name: Tattu Neo 30000mAh 12S1P 47.4V UHV 5C
Brand: Tattu

Tattu Neo 30000mAh 12S1P 47.4V UHV 5C

High-capacity smart power solution for heavy-payload UAV logistics.

Tattu Neo 30000mAh 12S1P 47.4V UHV 5C Smart UAV LiPo Battery with PDC1810F0002 Plug

The Tattu Neo 30000mAh 12S1P 47.4V UHV 5C Smart UAV LiPo Battery is built for 50kg-class heavy-lift drones used in logistics, mapping, and surveillance. It features a 4.45V ultra-high-voltage chemistry for higher energy output and a plug-and-play design for fast battery replacement and connection. The Neo Series delivers extended flight time and reliable power, making it ideal for long-endurance missions, heavy-payload transport, and emergency operations requiring rapid deployment.

47.4V
Nominal voltage
1422Wh
Energy capacity
60A
Continuous discharge current
500+
Cycle life

High Continuous Power Output

Delivers up to 60A continuous discharge and 150A peak output, supporting
heavy payloads and high-power flight operations.

Ultra High Voltage Innovation
Powered by advanced 4.45V UHV chemistry cells, this battery is up to 32.5% lighter than conventional solutions, delivering higher energy density and extended flight endurance.

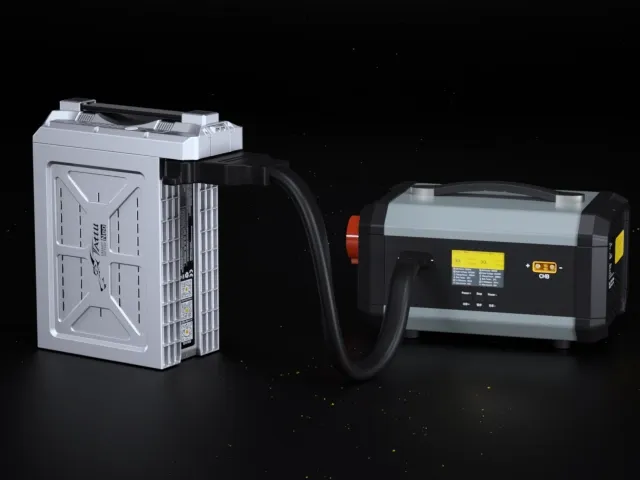

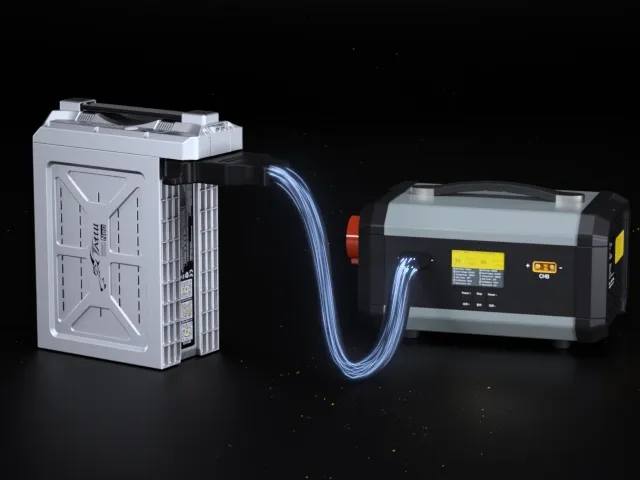

Fast Charging Efficiency
1C fast charging reduces downtime between flights. Combined with Tattu smart chargers, temperature-adaptive charging optimizes current flow to extend battery life.

One-Touch Parallel Operation

Smart parallel connection scales capacity instantly with a single button press—no manual
balancing or complex wiring required.

Extended Cycle Life

Premium-grade cells with exceptional consistency and intelligent battery management provide over 500 cycles for longer service life and lower total cost of ownership.

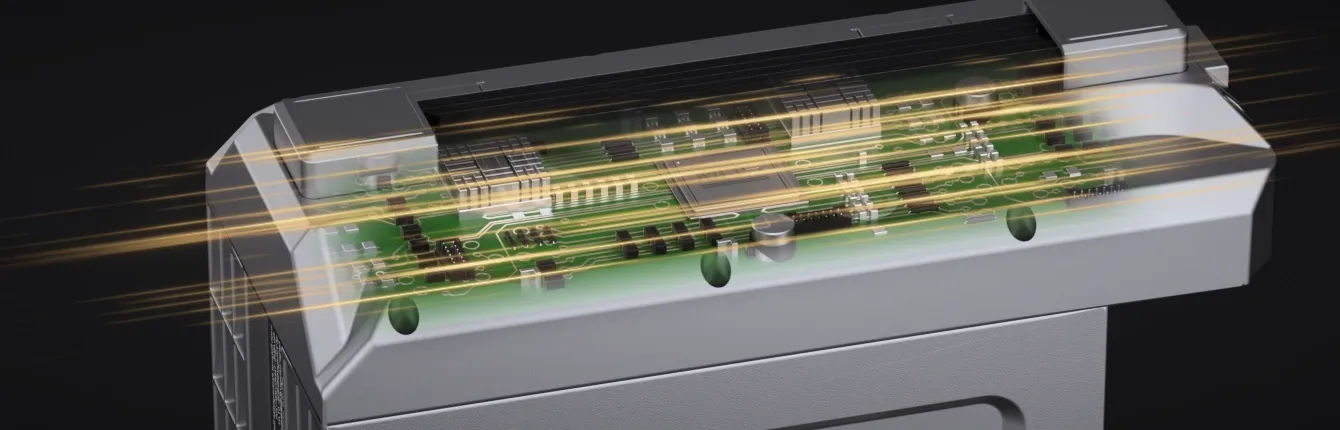

Intelligent BMS for Precision & Protection

Smart BMS with ±3% SOC precision (versus ±10% industry standard) combined with 4× enhanced balancing prevents unexpected
power loss, reducing unplanned landings by up to 90% and protecting expensive payloads.

Precision State-of-Charge
±3% SOC accuracy with intelligent low-voltage warnings and automatic storage mode
Faster Cell Balancing
Enhanced passive balancing current accelerates cell equalization for consistent performance across all cycles
Predictive Diagnostics
Multi-layer failure logic identifies potential issues before they impact operations
Remote Monitoring
PC, Android, and iOS apps provide real-time telemetry, firmware updates, and flight log export

Multi-Layer Safety Architecture for
Harsh Environments

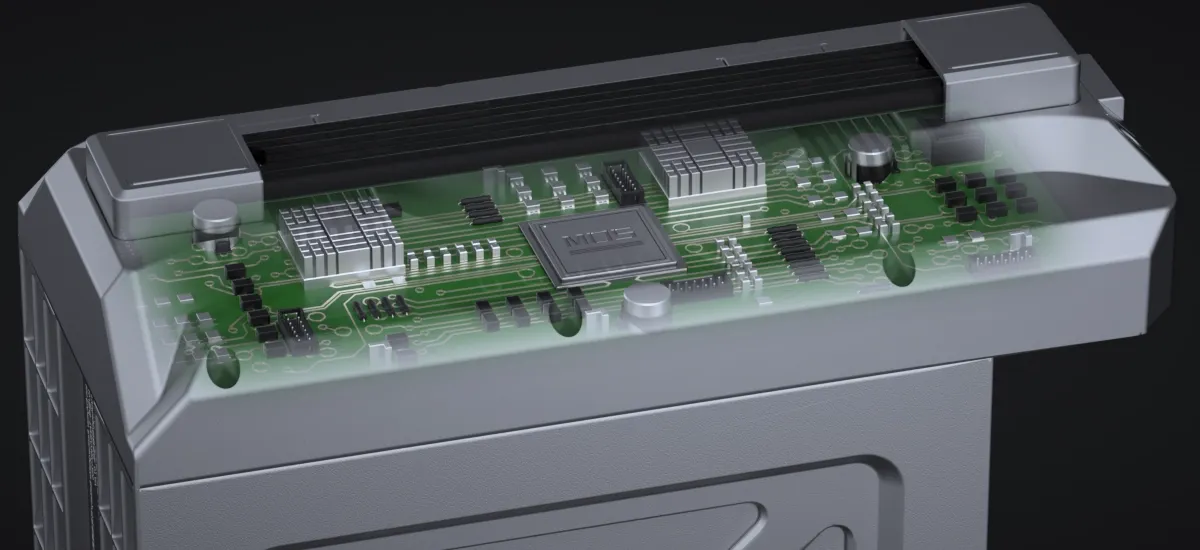

MOSFET Protection

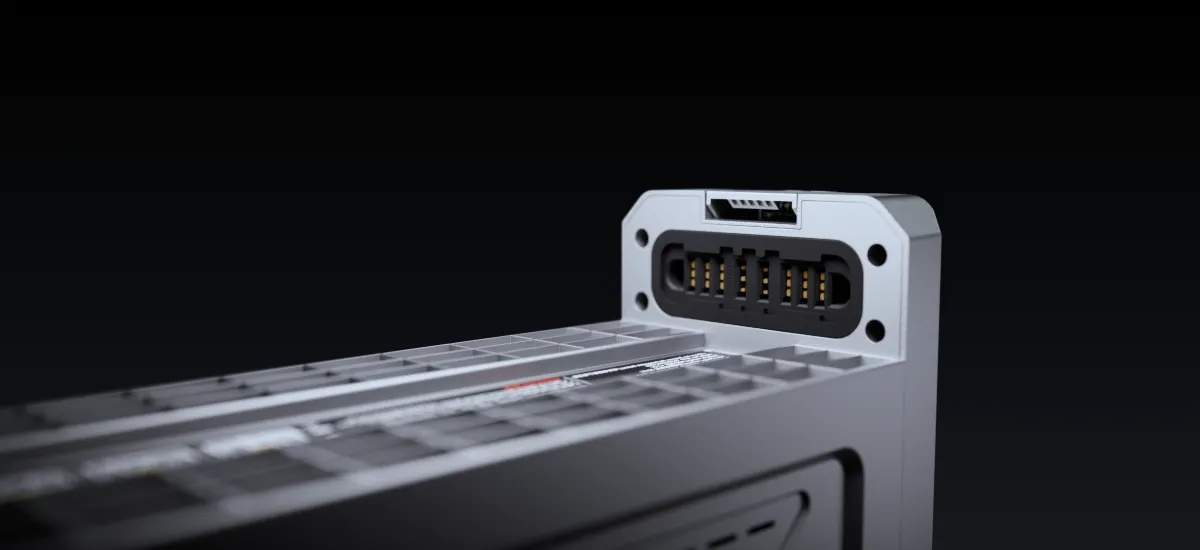

Plug-and-Play Design

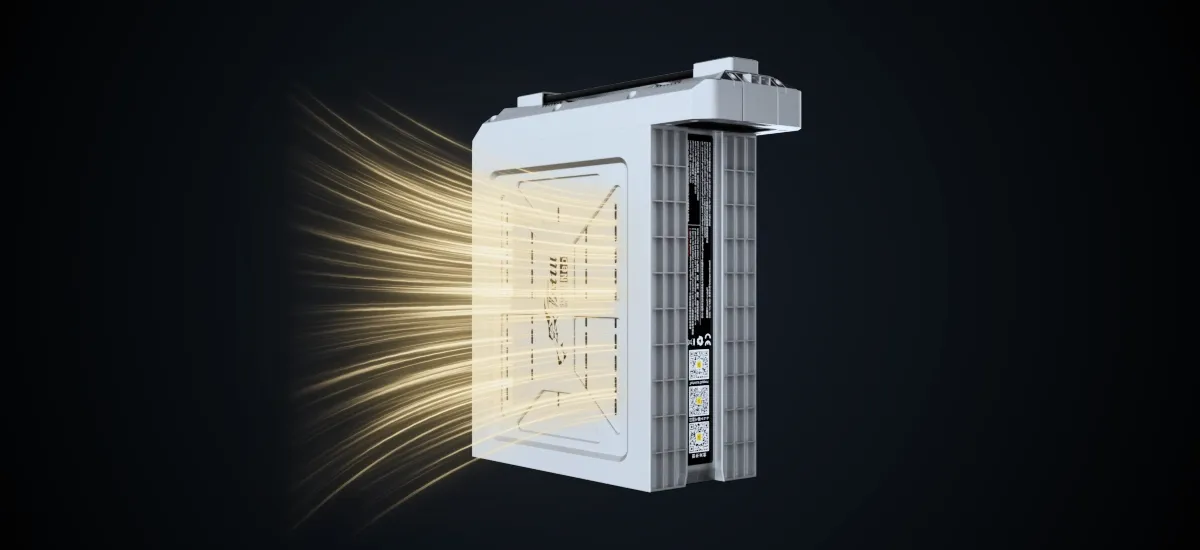

Enhanced Heat Dissipation

Prevents overload and short-circuit risks for safer,
more reliable drone operation.

Enables quick battery replacement and connection
for faster emergency mission turnaround.

Optimized airflow accelerates cooling, prevents
overheating, and improves charging efficiency.

Products

Industries

Support

FAQ

After-sale Service

Downloads

Customized

APP

Exhibition

FPV Battery Finder

Resources

News

Case Studies

Blogs

White Papers

About Us

About Tattu

Technology

Tattu FPV Legends

Contact Us

Tattu Neo 30000mAh 12S1P 47.4V UHV 5C

Tattu Neo 30000mAh 12S1P 47.4V UHV 5C

Tattu Neo 30000mAh 12S1P 47.4V UHV 5C Smart UAV LiPo Battery with PDC1810F0002 Plug

47.4V

1422Wh

60A

500+

High Continuous Power Output

Delivers up to 60A continuous discharge and 150A peak output, supporting heavy payloads and high-power flight operations.

Ultra High Voltage Innovation

Fast Charging Efficiency

One-Touch Parallel Operation

Extended Cycle Life

Premium-grade cells with exceptional consistency and intelligent battery management provide over 500 cycles for longer service life and lower total cost of ownership.

Intelligent BMS for Precision & Protection

Smart BMS with ±3% SOC precision (versus ±10% industry standard) combined with 4× enhanced balancing prevents unexpected power loss, reducing unplanned landings by up to 90% and protecting expensive payloads.

Precision State-of-Charge

Faster Cell Balancing

Predictive Diagnostics

Remote Monitoring

Multi-Layer Safety Architecture for Harsh Environments

Flexible Charging Ecosystem for Every Operation

Specs

Product Sku

TANEO30K12S5HV

Nominal Capacity

30000mAh

Energy

1422Wh

Nominal Voltage

47.4V

Charge cut-off voltage

53.4V

Discharge cut-off voltage

Cell [email protected]Cell 3.4V@≥0.5C

Max Continuous Discharge Current

60A

Max Pulse Discharge Current

150A

Typical Charge Current

6A (0.2C)

Maximum Charge Current

30A (1C)

Dimension(LxWxT)

261x205.86x99.6mm

Weight

5950g

Connector

PDC1810F0002

Charge Temperature

5~50 ℃

Discharge Temperature

-20~60℃

Storage Temperature

-20~35℃(<3 Months)

Internal Resistance

≤15mΩ

Cycle Life

>500 Cycles

Packaging

Delivers up to 60A continuous discharge and 150A peak output, supporting
heavy payloads and high-power flight operations.

Smart BMS with ±3% SOC precision (versus ±10% industry standard) combined with 4× enhanced balancing prevents unexpected
power loss, reducing unplanned landings by up to 90% and protecting expensive payloads.

Multi-Layer Safety Architecture for
Harsh Environments

Flexible Charging Ecosystem for
Every Operation

Cell [email protected]
Cell 3.4V@≥0.5C
